ESS-GRID DYNIO Series – 410V–766V, 62–93 kWh
Smart, all-in-one energy storage system for businesses and solar installations. The DYNIO Series by BSLBATT is reliable, efficient, and user-friendly, providing stable energy management, seamless power backup, and optimized performance for commercial and renewable energy setups.

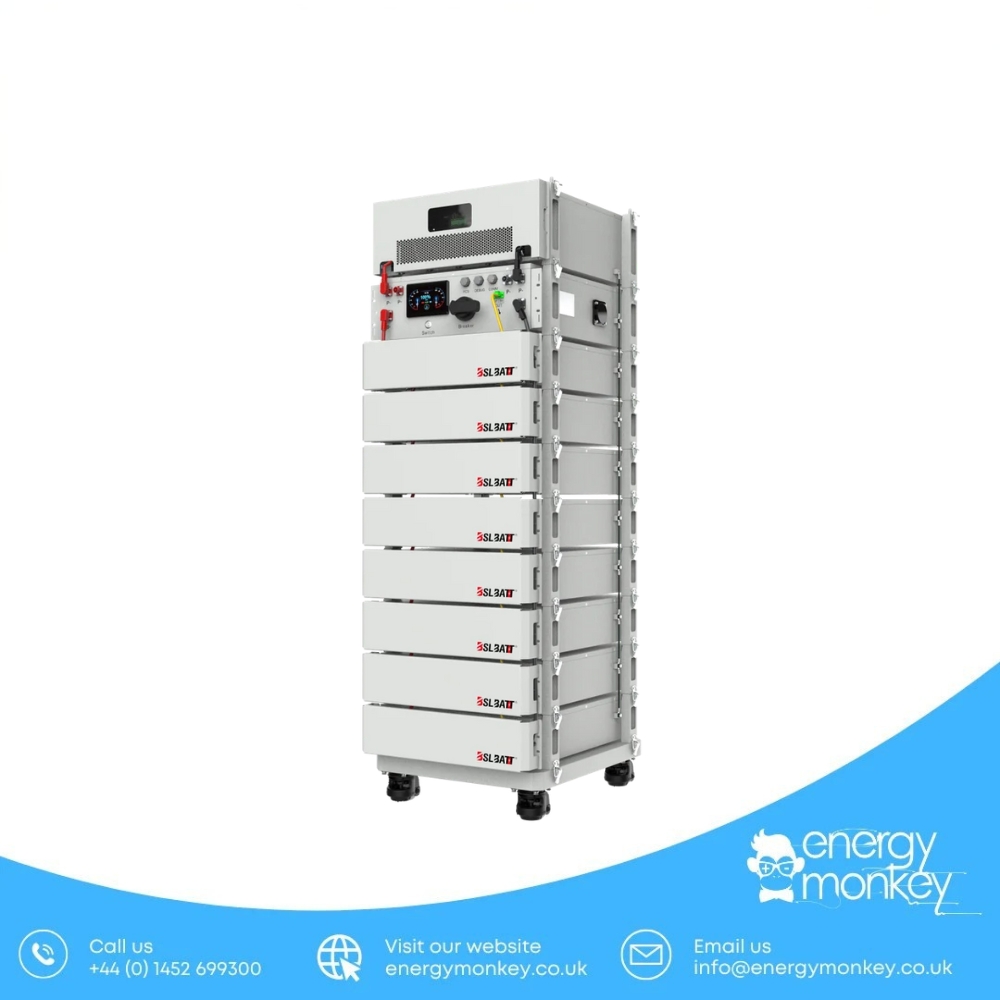

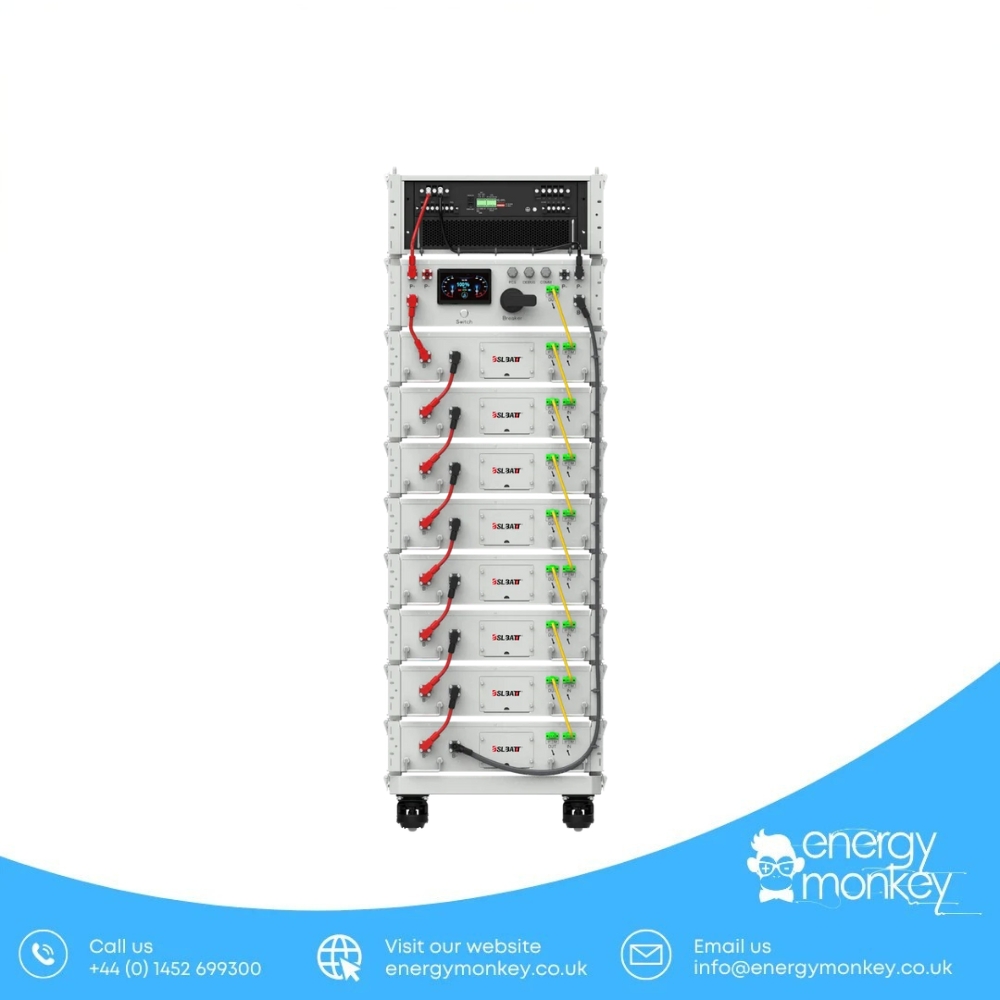

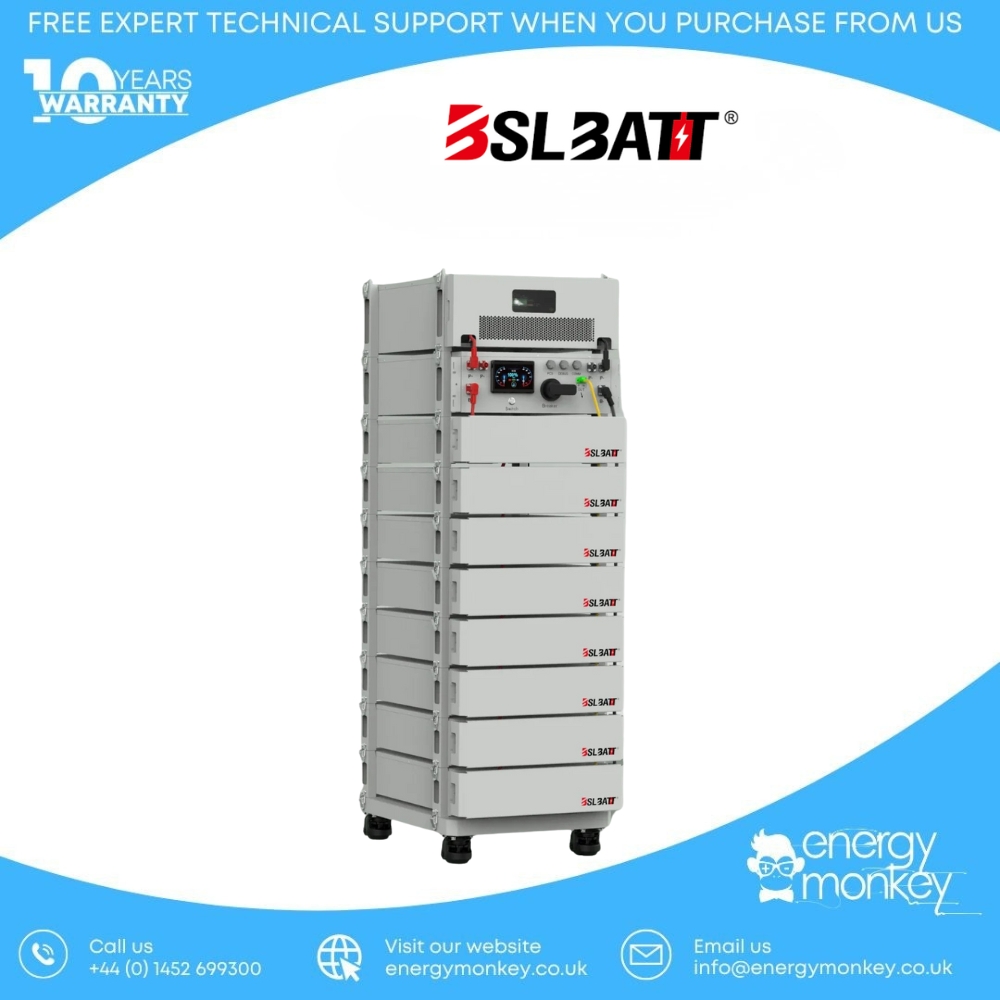

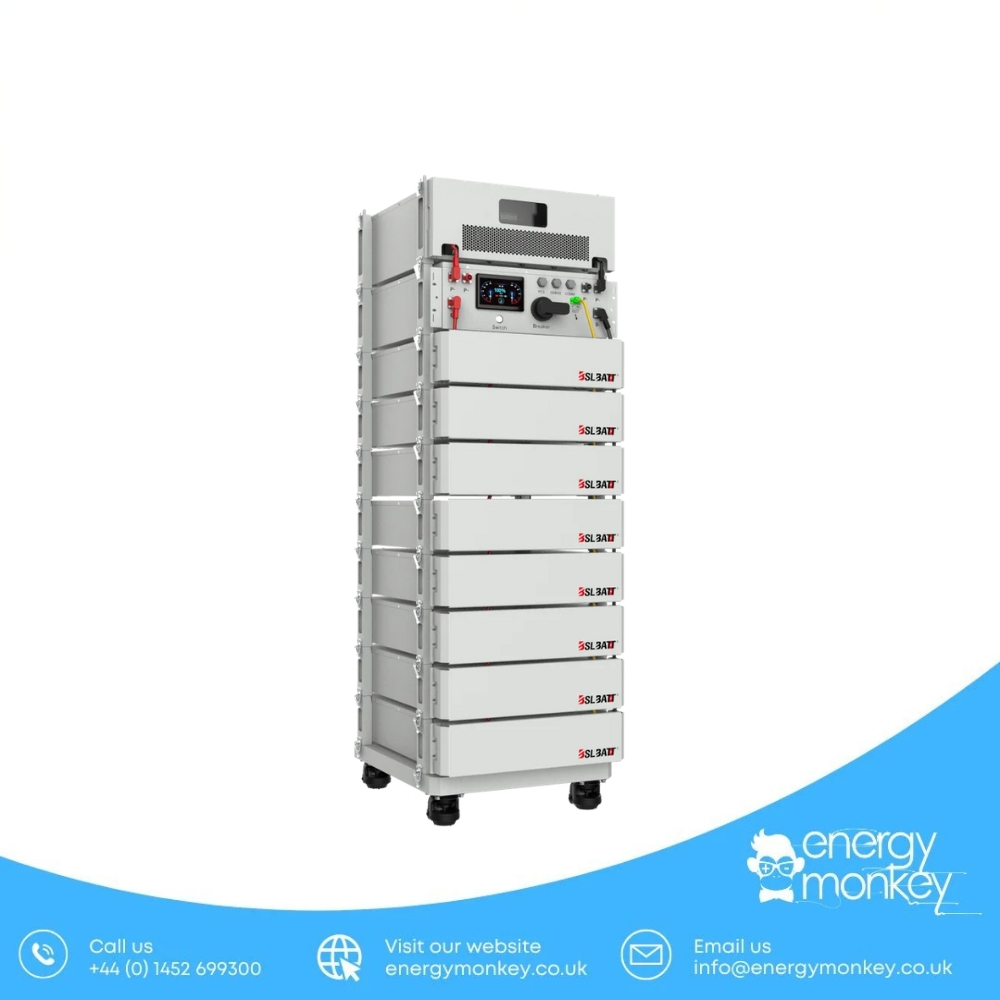

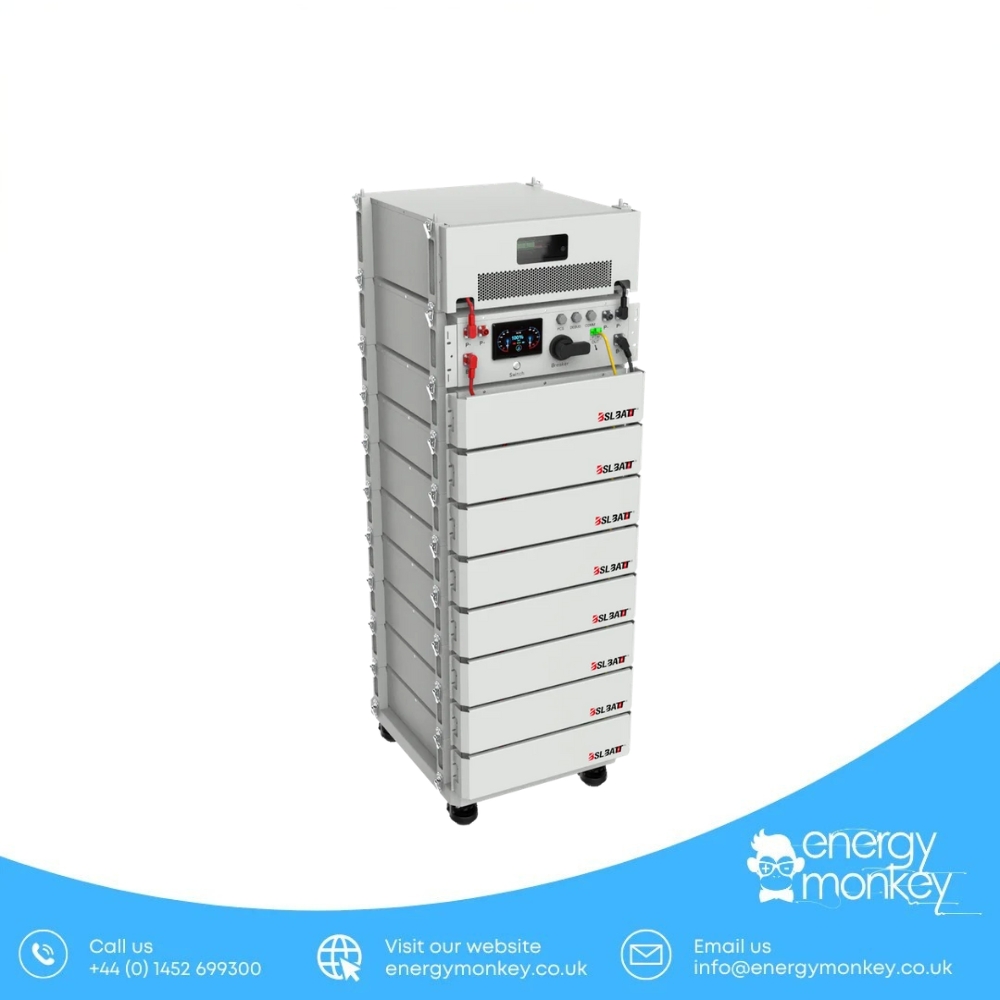

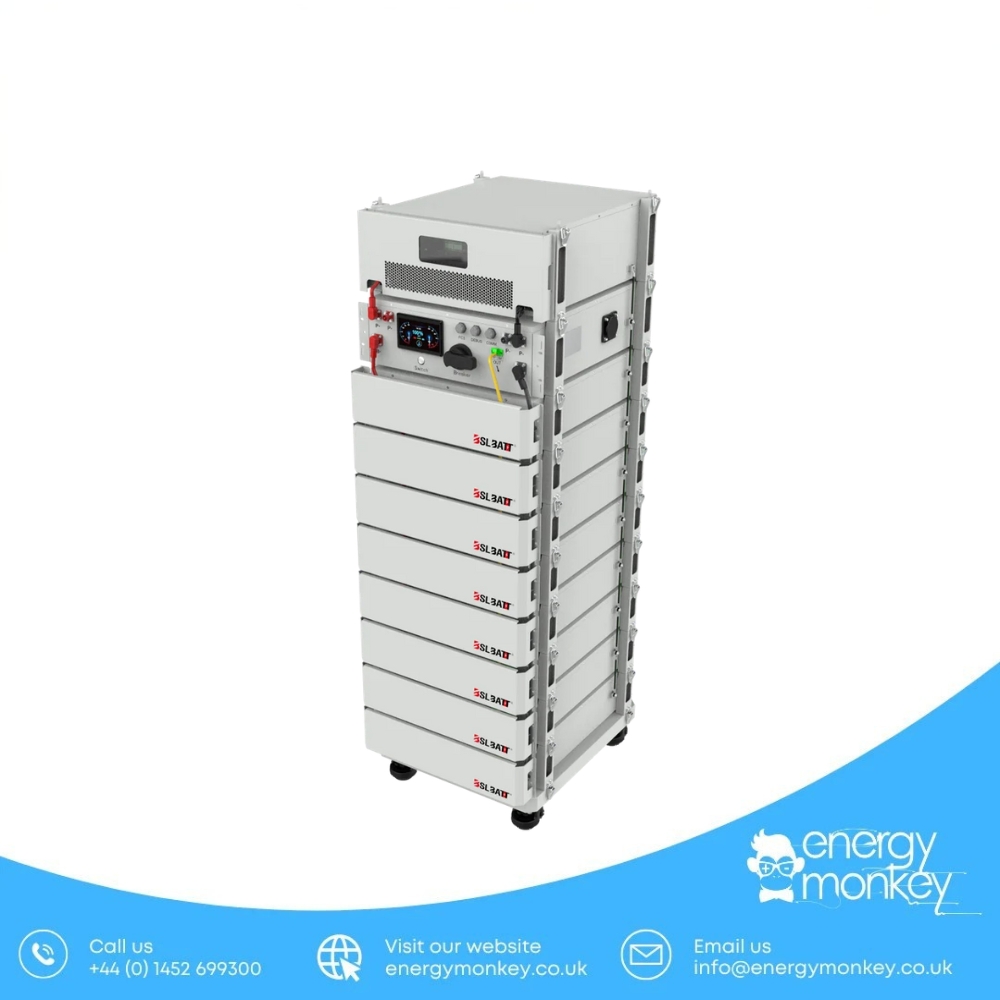

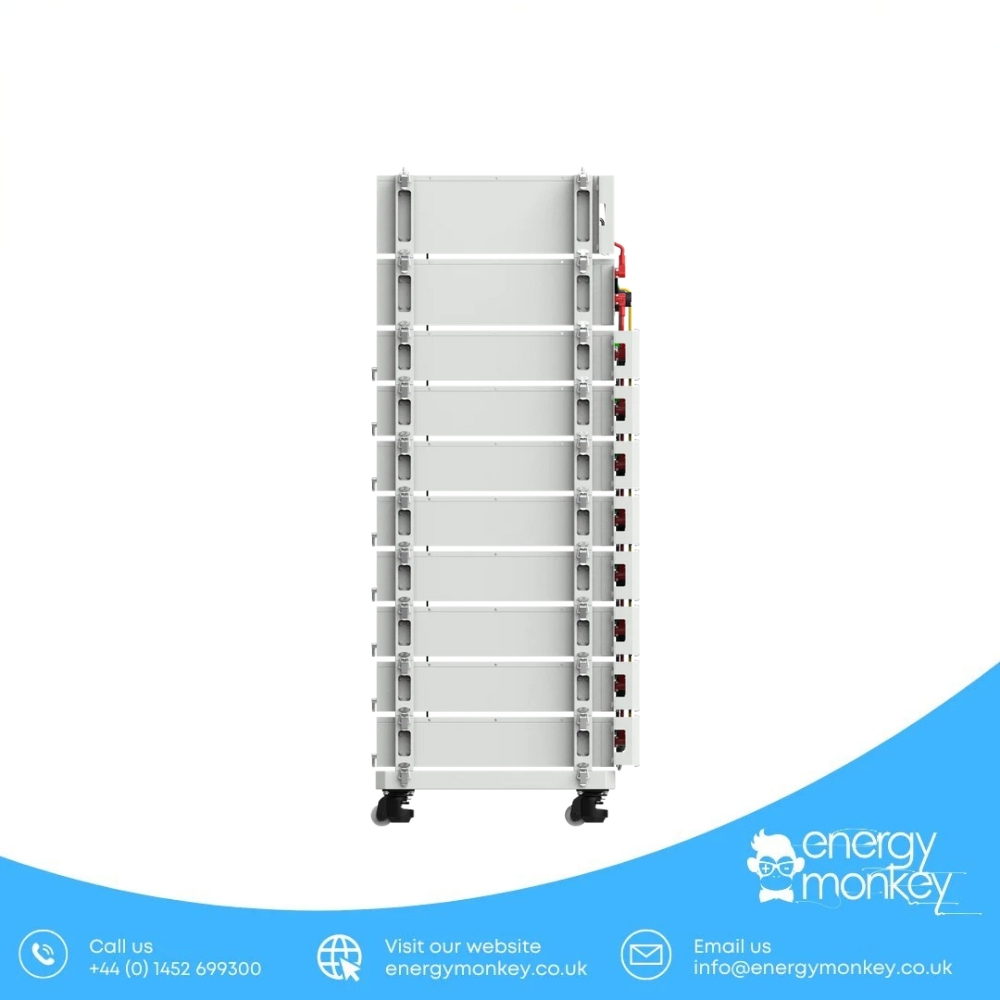

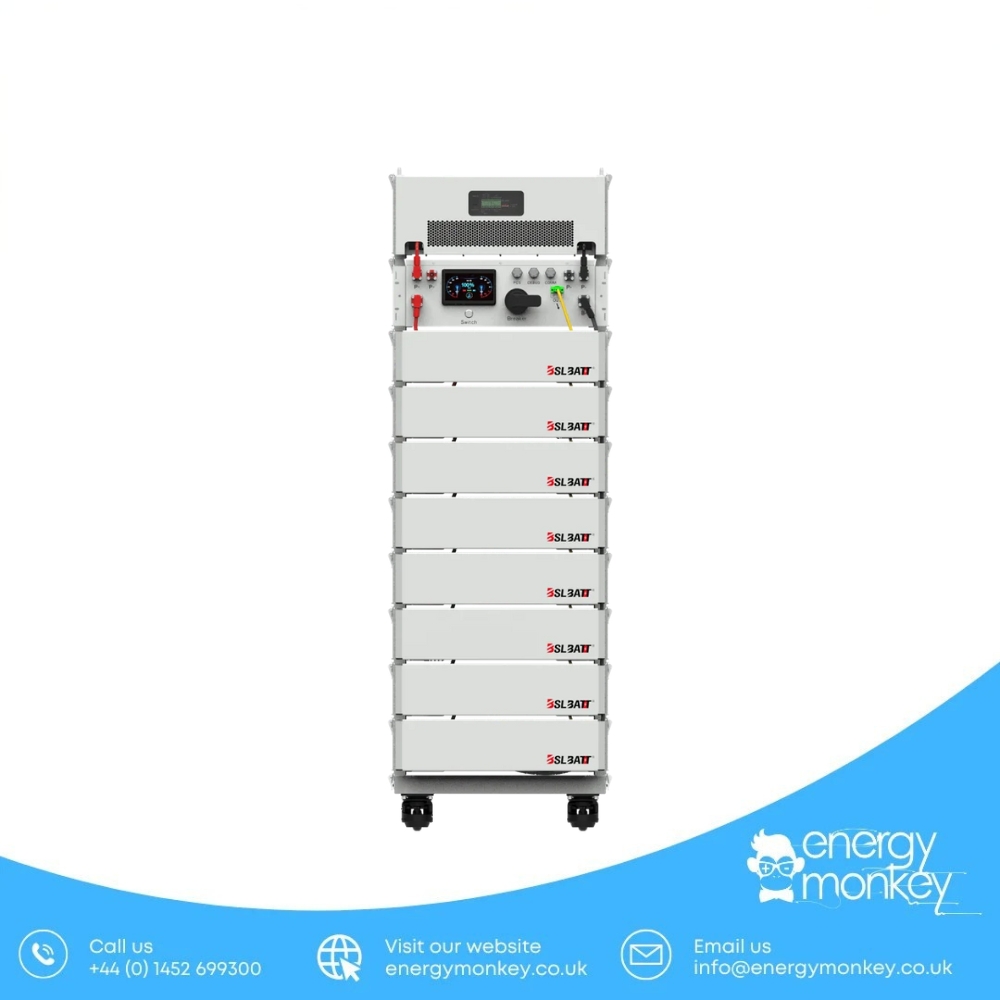

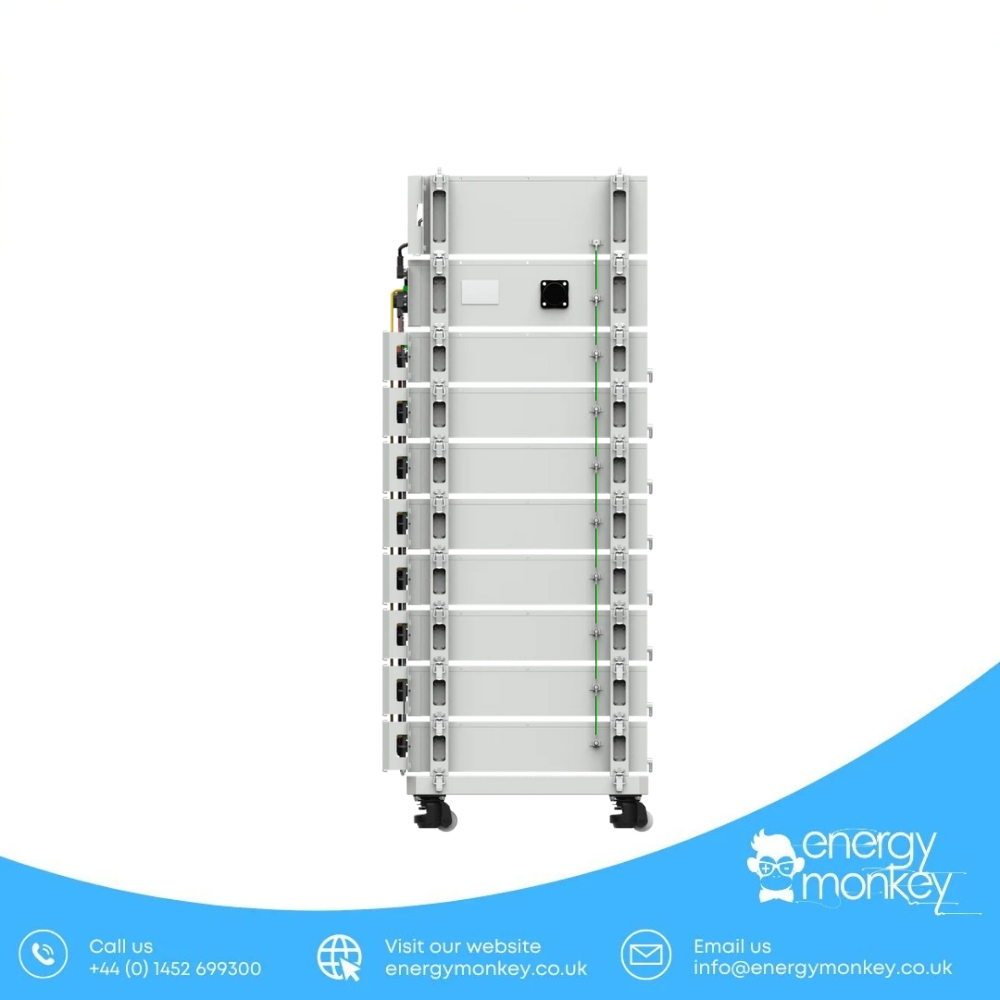

ESS-GRID DYNIO Series All-in-One Energy Storage System
The ESS-GRID DYNIO Series is an intelligent, all-in-one energy storage solution integrating a 30 kW inverter with 62 kWh to 93 kWh of high-performance LiFePO₄ battery storage. Designed by BSLBATT for commercial, industrial, and solar-connected applications, it delivers efficient charge and discharge, long cycle life, and stable, reliable operation for modern energy management needs.
Efficient Energy Management with ESS-GRID DYNIO
Engineered for smart energy control, the ESS-GRID DYNIO Series combines high conversion efficiency, intelligent system control, and built-in safety protection. It supports grid integration, peak shaving, backup power, and renewable energy utilization while reducing operational costs and improving overall energy efficiency.
Key Features – ESS-GRID DYNIO Series
- All-in-one system with integrated 30 kW inverter and battery storage
- Scalable energy capacity from 62 kWh to 93 kWh
- Supports parallel connection of up to three units
- High conversion efficiency up to 97.8%
- Long service life with up to 6,000 cycles @90% DOD
- Advanced forced-air cooling for wide temperature adaptability
- Multi-protocol communication for flexible system integration
- Certified to IEC62619, CE, and UN38.3 standards
- Ideal for commercial, industrial, and solar-connected applications
Scalable Modular Architecture
The ESS-GRID DYNIO features a modular design that allows up to three systems to be connected in parallel, enabling flexible capacity expansion to meet growing energy demands across commercial and renewable energy projects.
High Efficiency & Intelligent Thermal Control
With conversion efficiency reaching 97.8%, the ESS-GRID DYNIO Series maximizes usable energy while minimizing losses. Its advanced forced-air cooling system ensures stable operation across a wide temperature range from -30°C to 60°C, protecting internal components in demanding environments.
Technical Specifications – ESS-GRID DYNIO Series
- Number of Battery Packs: 8
- Rated Voltage: 460.8 V
- Voltage Range: 410.4 – 511.2 V
- Rated Energy: 62.4 kWh
- Maximum Discharging Current: 67.5 A
- Cycle Life: 6,000 cycles @90% DOD
- Maximum PV Power: 19.2 kW + 19.2 kW
- Maximum PV Voltage: 850 V
- PV Starting Voltage: 250 V
- MPPT Voltage Range: 200 – 830 V
- Maximum PV Current: 32 A + 32 A
- Rated Power (AC Side): 30 kVA
- Rated Current (AC Side): 43.5 A
- Rated Grid Voltage: 400 V / 230 V
- Grid Voltage Range: -20% ~ +15%
- Voltage Harmonics: < 5% (Load > 30%)
- Communication: EMS: RS485, Battery: CAN / RS485
- Standby / No-load Loss: < 10 W / < 100 W
- Dimensions (W × L × H): 586 × 713 × 1719 mm
- Weight: 617 kg
