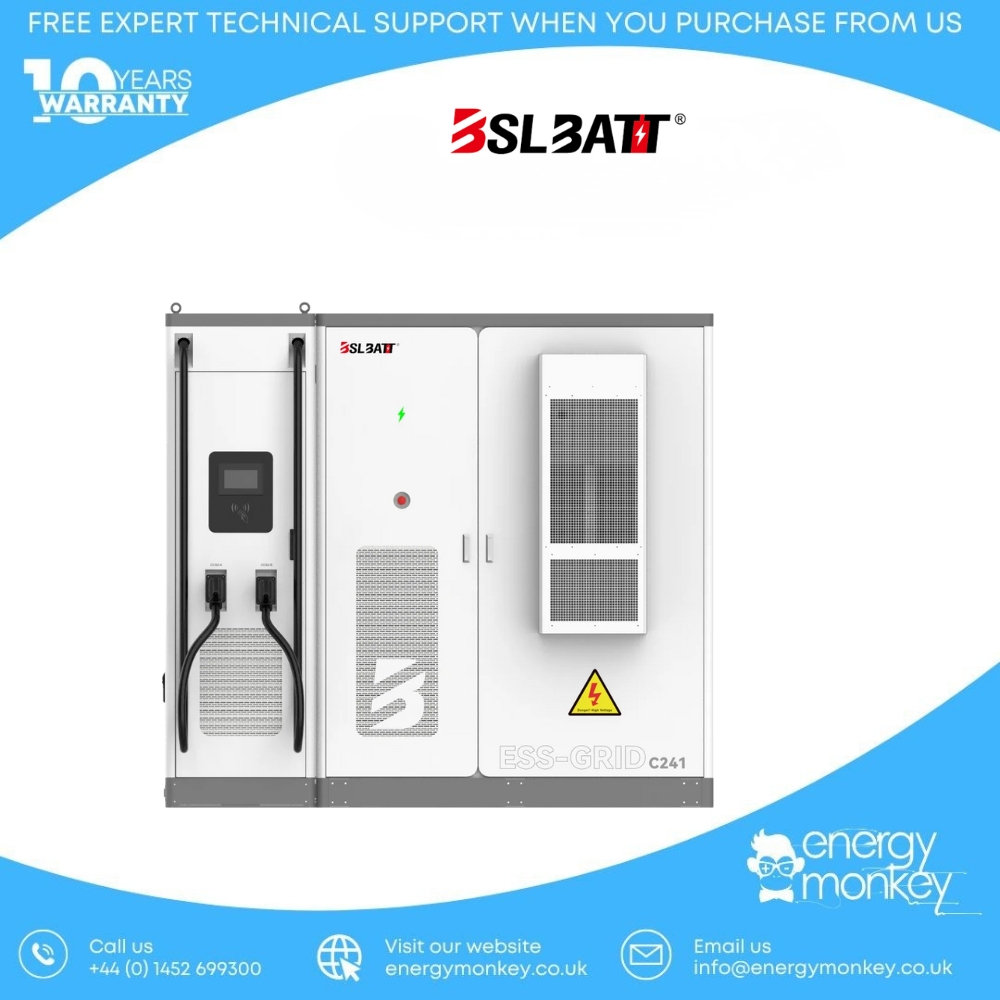

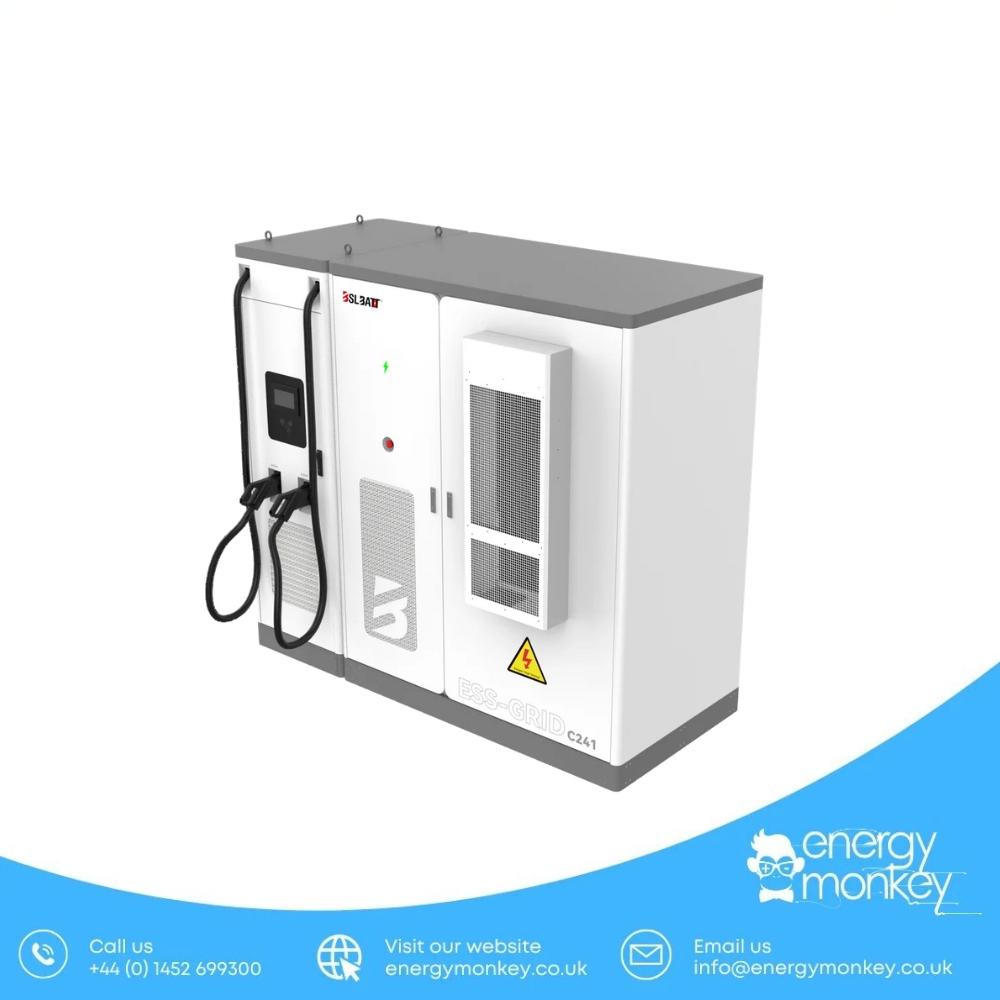

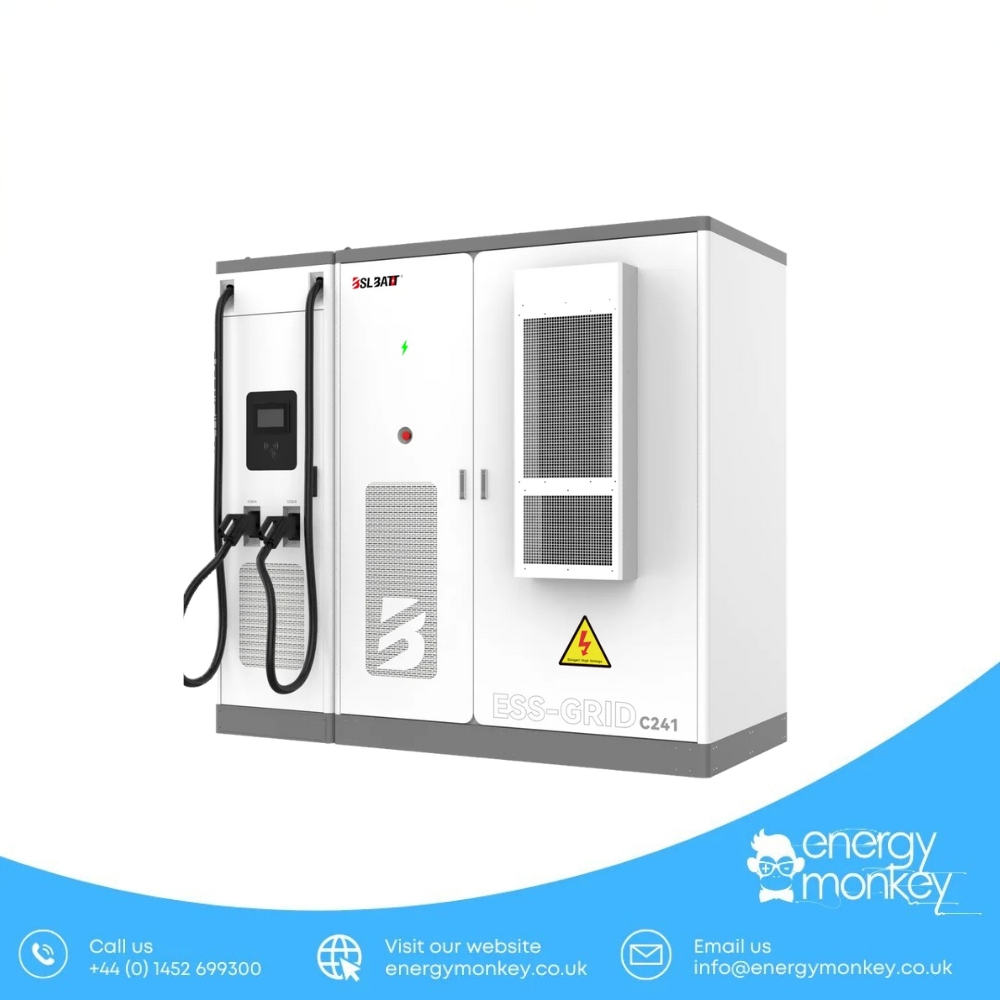

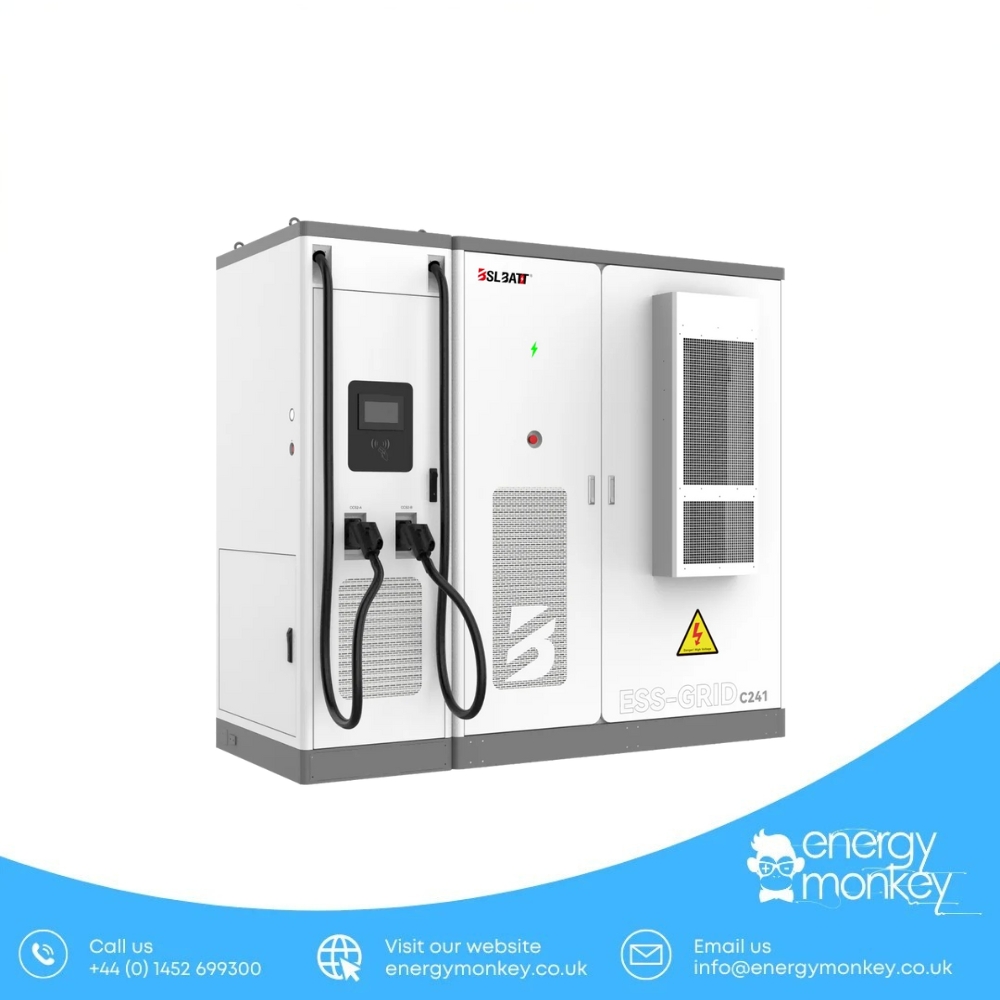

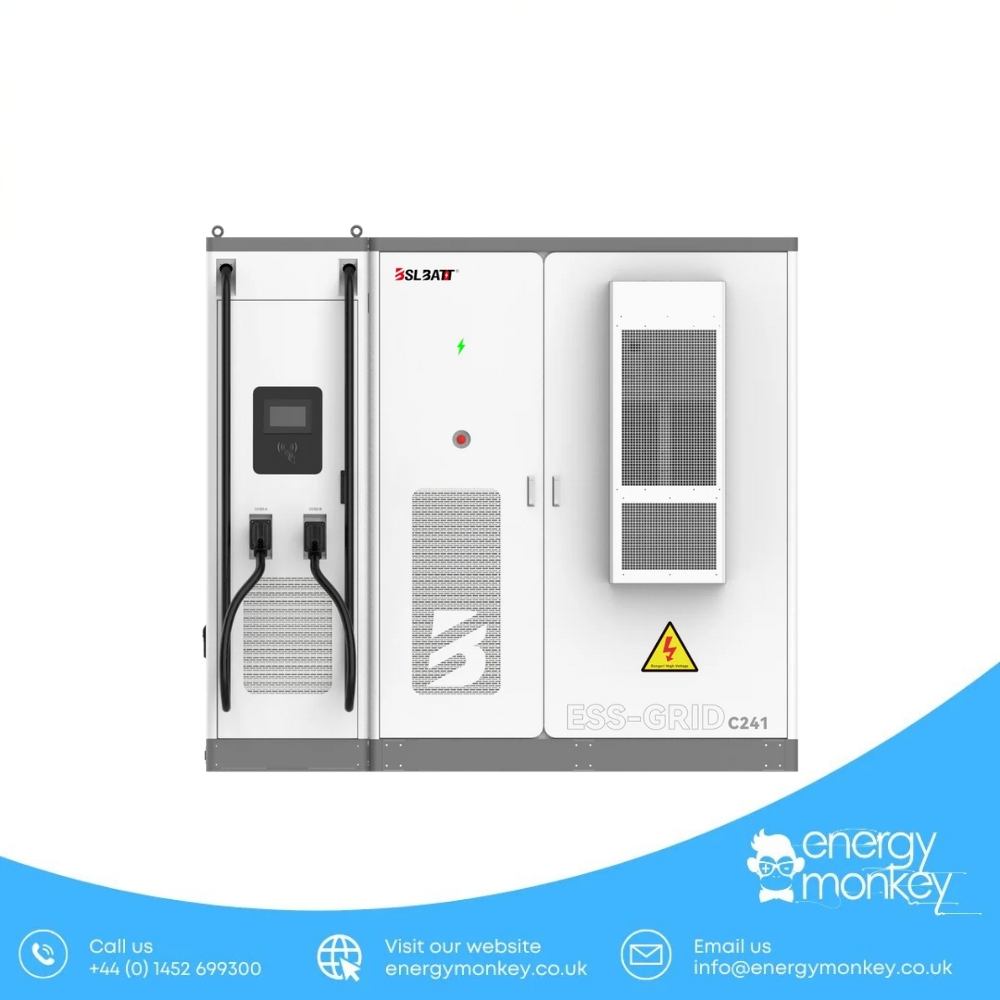

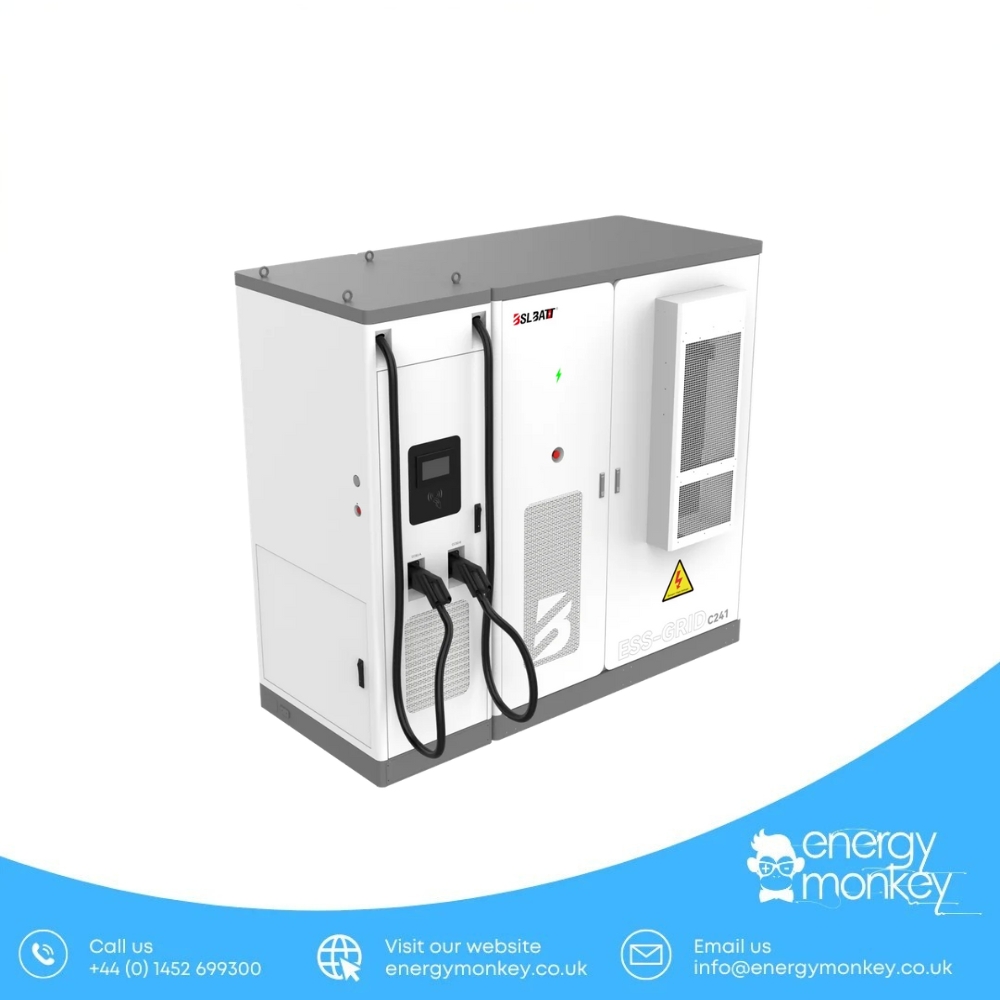

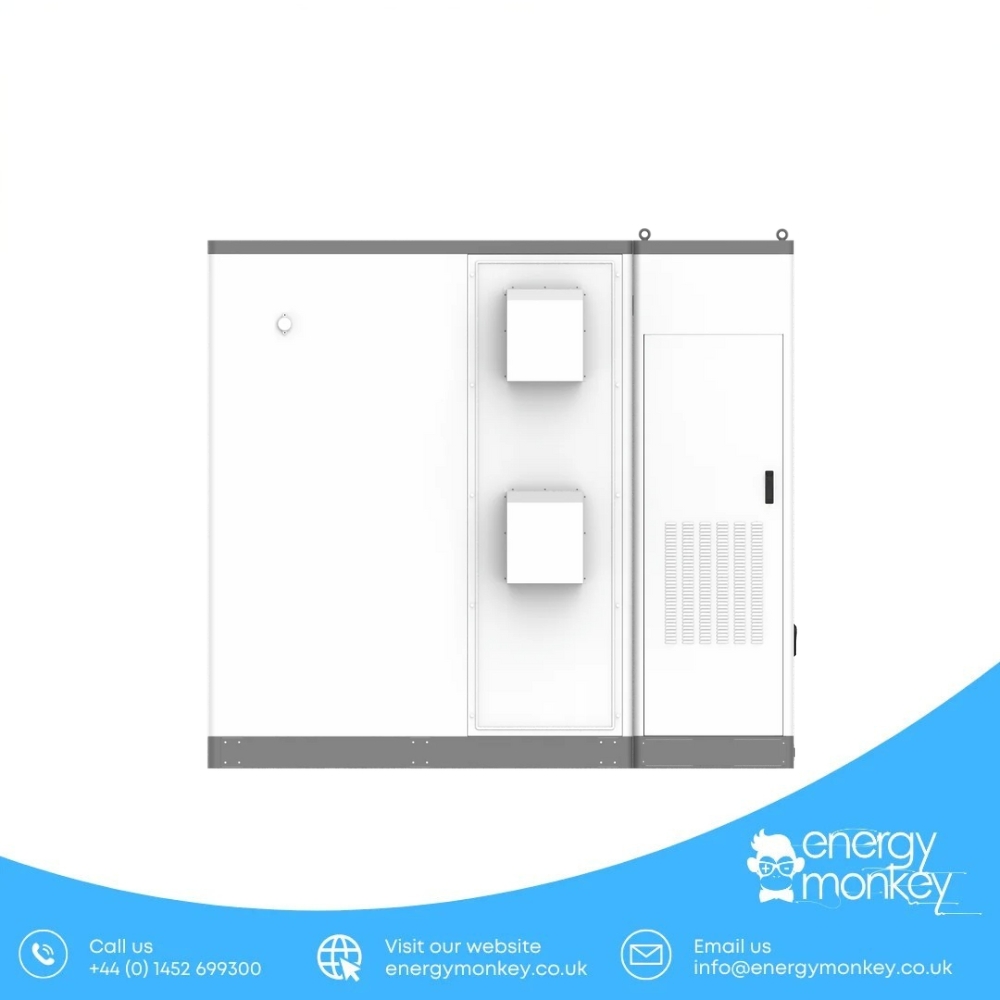

ESS-GRID C241-X120 – Advanced Energy Grid
The ESS-GRID C241-X120 is a high-capacity, all-in-one commercial and industrial energy storage system designed for efficient deployment across solar PV, commercial buildings, industrial facilities, and renewable energy projects in the UK. Engineered for maximum reliability, safety, and performance, this advanced LiFePO₄ energy storage solution delivers stable power management, seamless backup electricity, and scalable capacity to support peak shaving, grid stabilisation, load balancing, and renewable energy integration. Ideal for microgrids, factories, farms, EV charging stations, and off-grid applications, the ESS-GRID C241-X120 ensures efficient energy utilisation, low maintenance, and long-lasting performance in all-weather conditions.
Sustainable Living, Powered by BSLBATT
ESS-GRID C241-X120 – Charge-Independent Commercial & Industrial Energy Storage UK
The ESS-GRID C241-X120 is a fully integrated solar-powered EV charging station delivering up to 120 kW fast charging anywhere in the UK. It captures solar energy, stores 241 kWh of clean power, and reliably charges electric vehicles day or night without relying on the grid—ideal for remote sites, fleet operations, and sustainable mobility infrastructure.
All-in-One Energy Storage
Combines solar generation, battery storage, and DC fast charging in a compact unit. Supports on-grid and off-grid operation, saving space and reducing energy costs for commercial, industrial, and EV charging applications.
241 kWh High-Capacity Energy Storage
Built-in 241 kWh LiFePO₄ battery ensures reliable 24/7 energy availability, keeping charging stations operational even at night or during cloudy conditions.
Dual 120 kW Fast Chargers
Delivers up to 120 kW DC output across a 200–1000 V range, compatible with most EVs. Provides significant charging within 30 minutes, improving turnaround and user experience.
Intelligent Power Management
Supports dual charging guns with automatic load balancing, ensuring optimal energy utilisation, reduced downtime, and reliable charging performance.
Multiple Payment Methods Supported
Supports NFC, QR code, PayPal, and optional anonymous payments. Billing can be based on time, energy, or cost, offering flexibility for diverse commercial and industrial use cases.
Rugged Industrial Protection
IP55-rated enclosure operates reliably from –20 °C to 55 °C, providing resistance to humidity, dust, and harsh outdoor conditions across the UK.
High-Efficiency Fast Charging
Achieves over 95% conversion efficiency with a power factor > 0.98 and THD < 5%, maximising energy utilisation while minimising operational losses.
Smart Monitoring & Cloud Connectivity
Features a 10.1-inch colour touchscreen for real-time monitoring and billing. Built on OCPP 1.6, enabling remote monitoring, firmware updates, and data analytics via cloud platforms.
Optimised Load Distribution
Dynamic power distribution automatically adjusts output when charging two vehicles simultaneously, enhancing efficiency and profitability for EV charging operators.
Specifications
The ESS-GRID C241-X120 is a modular, all-in-one LiFePO₄ energy storage system with 241 kWh capacity and 120 kW output, designed for commercial, industrial, and solar-integrated EV charging infrastructure across the UK.
| System Power / Energy | 125 kW / 225 kWh |
| Rated Battery Capacity | 225 kWh |
| Rated System Voltage | 716.8 V |
| Battery Type | LiFePO₄ (LFP) |
| Cell Capacity | 314 Ah |
| Battery Connection | 1P × 16S × 14S |
| MPPT Voltage Range | 250–620 V |
| MPPT Full Load OCV (Recommended) | 360–580 V |
| Rated AC Power | 125 kW |
| Nominal AC Current | 181 A |
| Rated AC Voltage | 400 Vac / 230 Vac |
| Rated Frequency | 50 Hz / 60 Hz (±5 Hz) |
| Protection Level | IP55 |
| Fire Protection | Aerosols / Perfluorohexanone / Heptafluoropropane |
| Operating Temperature | –25 °C to 60 °C |
| Cooling Method | Air-Cooled |
| Dimensions (L × W × H) | 1800 × 1430 × 2300 mm |
| Weight (Approx.) | 3197 kg ±3% |
