Complete Split Charge DC-DC Kit – Featuring the Victron Victron Orion-Tr Smart 12/12-30A
If your vehicle is equipped with a smart alternator, start/stop technology, or regenerative braking, then a traditional split charge system may not be sufficient. In these setups, a DC to DC charger – also known as a Battery to Battery (B2B) charger – is essential to ensure efficient and safe charging of your leisure or auxiliary battery.
This complete kit features the Victron Orion-Tr Smart 12/12-30A (360W) Non-Isolated DC-DC Charger (ORI121236140) – a professional-grade, high-performance charger trusted by campervan converters, off-grid installers, and marine users across the UK.
Key Features of the Victron Orion-Tr Smart 12/12-30A:
-
Adaptive 3-stage charging for optimal battery performance
-
Built-in Bluetooth connectivity for real-time monitoring and programming via the VictronConnect app
-
Engine running detection and remote on/off control for seamless integration into your vehicle or boat’s electrical system
-
Suitable for use in both 12V and 24V systems
-
Compatible with lead-acid and lithium batteries
-
High temperature tolerance – full rated output up to 40°C, with operation up to 55°C
-
Parallel connection supported – scale up power with multiple units

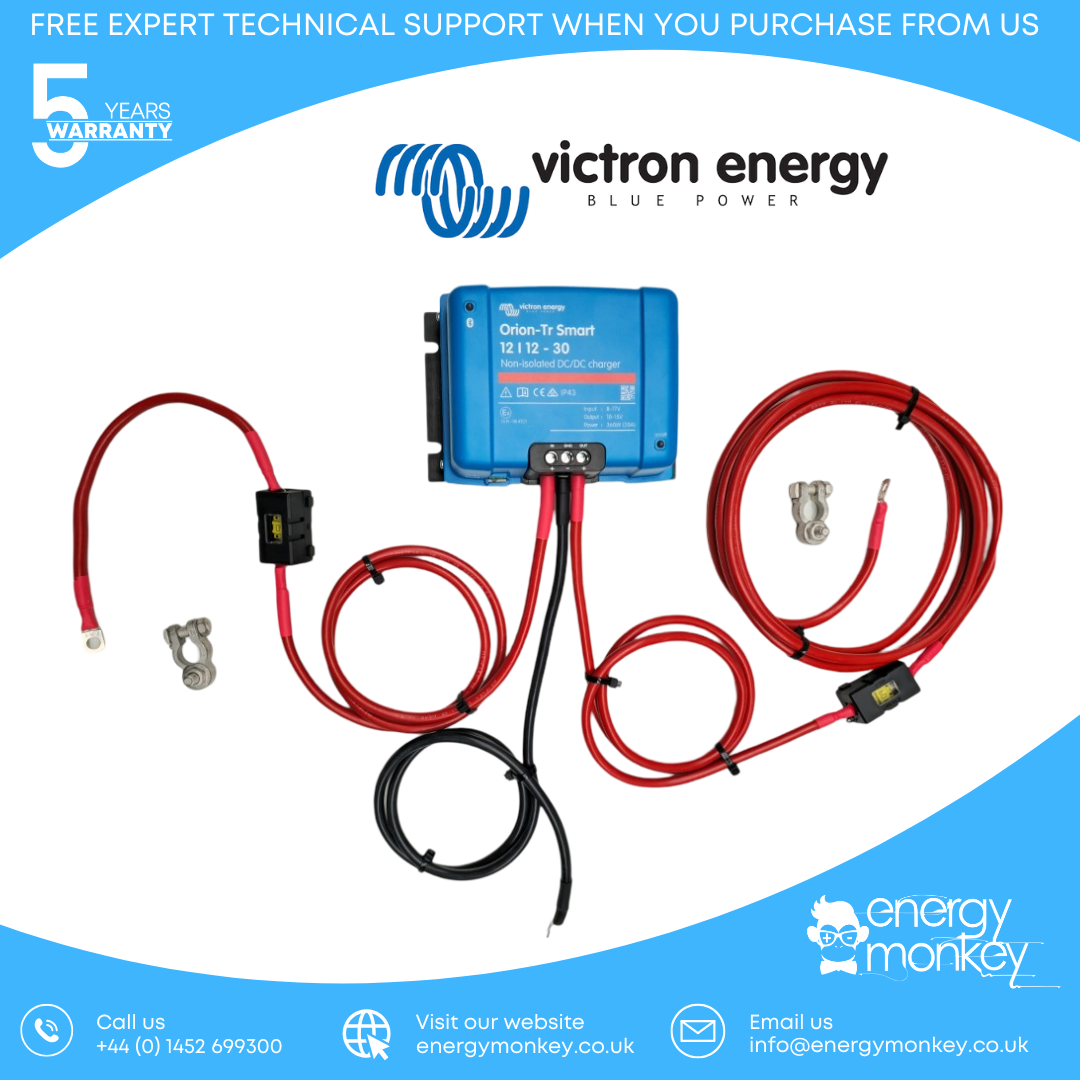

What’s Included in Your Pre-Crimped, Ready-to-Install Kit:
-
1x Victron Orion-Tr Smart 12/12-30A (360W) DC-DC Charger – Non-Isolated
-
Hi-Flex Single PVC 110amp 16mm² Battery Cable
-
Black (Ground connection)
-
Red (Starter Battery to Orion – custom length)
-
Red (2.5m Orion to Leisure Battery)
-
-
2x Victron MIDI Fuse Holders
-
1x Victron MIDI Fuse 80A/32V
-
Set of Battery Terminals
-
16mm² Copper Tube Terminals (8mm holes)
-
Crimp Terminals
This DC to DC charger kit is expertly assembled and supplied pre-crimped for a hassle-free installation. It’s ideal for campervans, 4x4s, motorhomes, boats, and other vehicles requiring a reliable dual battery setup.
