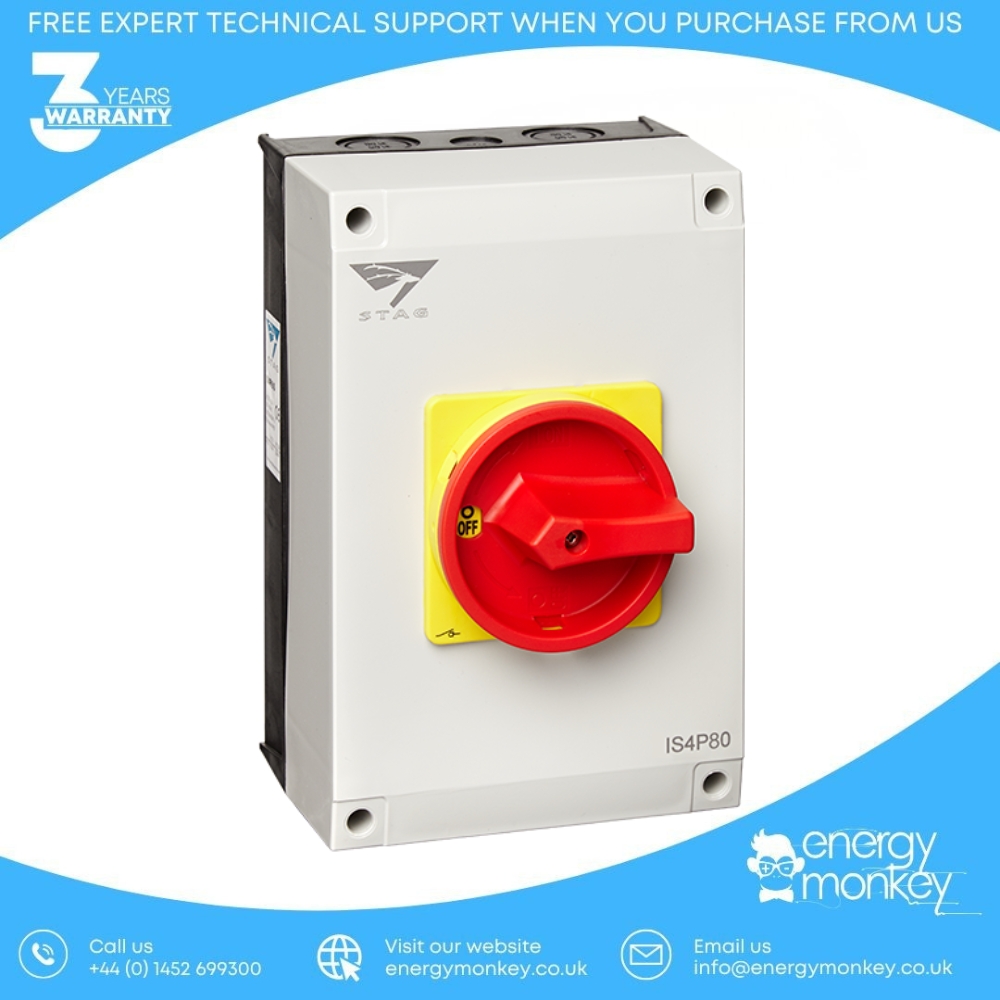

Stag Isolator 4 Pole, 80 Amp Enclosed IP65, 240x160x120mm (IS4P80)
Description
The Stag IS4P80 Enclosed 4 Pole 80 Amp Isolator is a heavy-duty rotary isolator switch designed for the safe isolation of three-phase and neutral electrical circuits. It is ideal for industrial, commercial, and renewable energy installations where dependable power disconnection is required.
The IS4P80 is rated at 80A and complies with IEC / EN 60947-3. Housed in a flame-retardant IP65 polycarbonate enclosure, it provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor environments. The isolator features a lockable rotary handle and an interlocked lid to enhance operational safety.
Key Features
- 4-Pole Isolation: Simultaneous disconnection of all three phases and neutral.
- IP65 Rated Enclosure: High resistance to dust and water jets.
- Lockable Rotary Handle: Can be padlocked in the OFF position.
- Interlocked Lid: Prevents access to live parts when switched ON.
- Flame-Retardant Enclosure: Increased safety in harsh environments.
- External Mounting Points: Secure and simple installation.
- Additional Earth Connection: Enhanced grounding safety.
- Multiple Gland Knockouts: Supports M20 / M25 / M32 cable entries.
Installation
- Ensure the power supply is completely isolated before starting installation.
- Mount the isolator using the external mounting points provided.
- Verify the rotary handle is in the OFF position before opening the enclosure.
- Select and open the appropriate gland knockouts (M20 / M25 / M32).
- Connect incoming supply cables to L1, L2, L3, N.
- Connect outgoing load cables to T1, T2, T3, N.
- Terminate the earth conductor using the additional earth terminal.
- Tighten all terminal screws to a torque of 3 Nm.
- Close and secure the enclosure lid before switching ON.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IS4P80 |
| Poles | 4 Pole |
| Rated Operational Current (AC21) | 80 A |
| Rated Operating Voltage | 230 – 440 V AC |
| Rated Voltage | 415 V |
| Frequency | 50 / 60 Hz |
| Rated Power (3-Phase Motor @ 415V, AC23A) | 30 kW |
| Rated Insulation Voltage (Ui) | 690 V |
| Ingress Protection | IP65 (Enclosure) / IP20 (Body) |
| Maximum Cable Size | 35 mm² (Solid / Stranded) |
| Enclosure Material | Flame-retardant Polycarbonate |
| Lid Screw Material | Stainless Steel |
| Dimensions (H × W × D) | 240 × 160 × 120 mm |
| Depth (Including Handle) | 165 mm |
| Tightening Torque | 3 Nm |
| Mechanical Life | 10 × 10³ Operations |
| Weight | 1.34 kg |
| Compliance | IEC / EN 60947-3, RoHS |
| Approvals | CE, SEMKO |
Compatible Auxiliary Contact
The SAC150-11 Auxiliary Contact is compatible with the IS4P80 isolator and is used for signaling and control feedback.
| Parameter | Specification |
|---|---|
| Part Number | SAC150-11 |
| Contact Configuration | 1 NO + 1 NC |
| Rated Operational Current AC15 (230V) | 6 A |
| Rated Operational Current DC13 (125V) | 1.1 A |
| Rated Operational Current DC13 (250V) | 0.55 A |
| Rated Insulation Voltage | 500 V |
| Maximum Fuse | 10 A (gG / gL) |
| Max Cable Size (Solid) | 0.75 – 2.5 mm² |
| Max Cable Size (Flexible with Ferrule) | 0.5 – 1.5 mm² |
| Tightening Torque | 0.6 Nm |
| Compliance | IEC / EN 60947-3, RoHS |
| Approvals | CE |
